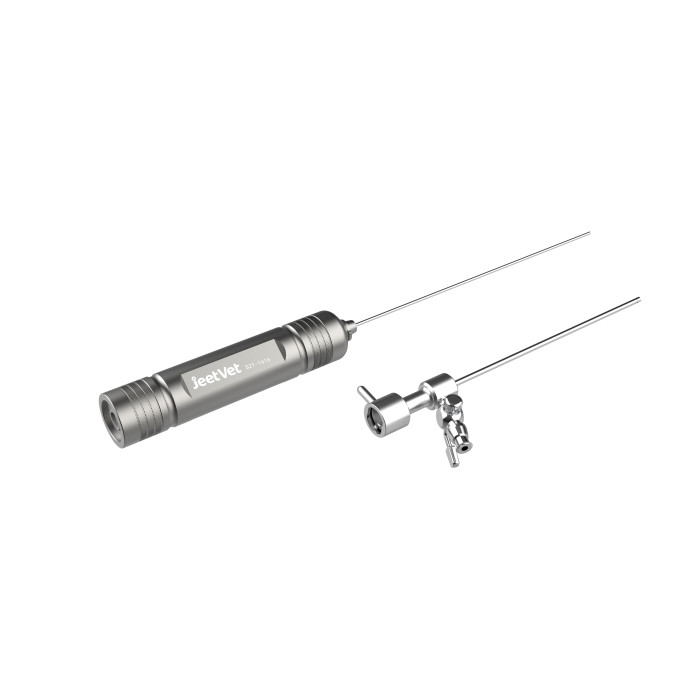

DZT-1616 Veterinary Rigid Endoscope
Detail Information
Introduction to DZT-1616 Veterinary Rigid Endoscope
The DZT-1616 rigid endoscope veterinary support connection to smart device and veterinary imaging systems for data transmission and real-time monitoring. Its rigid design ensures stable imaging during animal diagnostics and minimally invasive surgery, like animal joint repairs, abdominal biopsies, nasal tumor assessments, bladder stone removal, pleural effusion diagnosis and treatment, etc.
Main Features
High-quality optical system
Provides high quanlity endoscopic images. 120° wider observation range. The depth of field from 5 mm to 50 mm makes it adaptable to different inspection depths.
Rigid mechanical design
The insertion tube is 160 mm long and is made of medical-grade stainless steel materials that are corrosion-resistant and antibacterial.
Convenient operation
Ergonomic handheld controller. Less than 1kg. Ensures maneuverability and ease of use, reducing operator fatigue during prolonged procedures.
Portability and Efficiency
Quick and smooth diagnosis and treatment. Reduce operational difficulty and surgical time.
Professional matching sheath
Outer Diameter:2.7mm, Support water injection and air supply
DZT-1616 Veterinary Rigid Endoscope Technical Parameters
General Parameters |
Brand
|
JeetVet
|
|
|
Model
|
DZT-1616
|
||
|
Purpose
|
Mainly used for endoscopic examination, biopsy, and minimally invasive surgery of the abdominal cavity, joints, ear and nose tracts of animals.
|
||
Optical Parameters |
Viewing angle
|
120°
|
|
Depth of field | 5 mm - 50 mm | ||
Pixels | 160,000 | ||
Mechanical Parameters | Working length | 600 mm | |
Outer diameter of the tube | 1.6 mm | ||
Outer Diameter of pluggable outer sheath | 2.7 mm | ||
Independent water & air supply channel | None | ||
Insertion tube material | Medical grade stainless steel material, corrosion-resistant and antibacterial | ||
Bending angle | 180° | ||
Operation and Control | Control method | Ergonomic design handheld controller | |
Display | Displayed by user's smart phone, tablet or computer | ||
Lighting System | Light source type | Endoscope operates without internal electric power, drawing power from the user's mobile phone. | |
Illumination | LED light | ||
Connection and Compatibility | Connection interface | Use USB cable to connect with smart phones, tablet or computer | |
Compatible devices | Support connection to smart phone, tablet, computer for data transmission and real-time monitoring | ||
Other Functions | Disinfection method | Alcohol wiping，enzymatic cleaning solution or 2% glutaraldehyde disinfection | |
Portability | Lightweight design, equipped with a portable case, convenient for carrying and use | ||
Memory | Internal memory of mobile phone | ||
User interface | Friendly operation interface | ||
Accessories | Biopsy forceps, Y-shape valve, Luer connector syringe, Packing case, Cleaning brush and etc. | ||
Endoscopic Examination for a Cat by Veterinary Rigid Endoscope
Endoscopy is an incredible technique that allows vets to see inside an animal's body without the need for invasive surgery. It involves using a tiny camera on a flexible tube, which gives us a clear and detailed view of the stomach and other internal organs.
Veterinary Rigid Endoscope Application Scenario
The veterinary flexible otoscope offers unparalleled versatility and precision in the diagnosis and treatment of various ear, nasal, and oral conditions in animals. Its flexibility allows for comprehensive examination, making it particularly valuable in assessing complex cases that involve anatomical challenges or smaller species.
1. Otic Examinations and Procedures:
Veterinarians use the flexible otoscope to conduct detailed examinations of the ear canal, facilitating the diagnosis of conditions such as otitis externa, otitis media, and the presence of foreign bodies.
2. Nasal Cavity and Pharyngeal Assessment:
This device is also highly effective for nasal cavity and pharyngeal assessments, enabling veterinarians to visualize and treat conditions such as nasal polyps, tumors, or foreign objects. The flexibility of the otoscope is particularly advantageous in reaching and evaluating areas that are otherwise difficult to access with rigid scopes.
3. Dental and Oral Examinations:
In addition to otic and nasal applications, the flexible otoscope is utilized in dental and oral examinations, especially in small mammals and exotic species. It provides a non-invasive method to inspect the oral cavity for dental disease, oral masses, or other abnormalities, thus contributing to comprehensive patient care.
4. Minimally Invasive Procedures:
Beyond diagnostics, the flexible otoscope can be employed for minimally invasive procedures such as biopsies, foreign body removals, and flushing of the ear canal. Its precision and maneuverability reduce patient discomfort and improve the overall efficacy of treatment.
5. Exotic and Small Animal Care:
This tool is especially beneficial in the care of exotic pets and small animals, where its slim and flexible design allows for safe and thorough examinations without the need for extensive restraint or sedation. For species with delicate or intricate anatomy, the flexible otoscope is often the preferred choice to ensure detailed visualization and accurate diagnostics.
